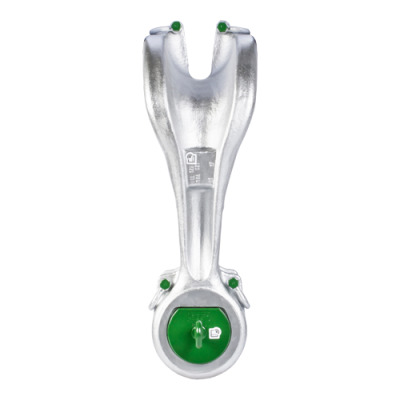

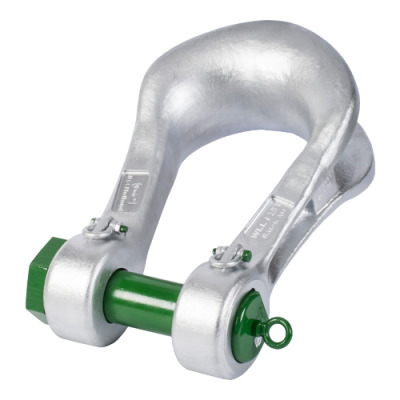

P-6043 - Green Pin Shackle BN, High Load Capacity grade 8 Shackle With Safety Bolt

Product Description

Highlights:
• Saves up to 20% on cost of wire rope
• Improves safety thanks to multiple handling points and RFID-tracking
• Unique Green Pin® design (patent pending)
• Best choice for heavy lifting projects
• Superior stock availability of 99%

Specifications:
• Material: bow and pin alloy steel, grade 8, quenched and tempered
• Safety factor: MBL equals 5 x WLL
• Standard: ASME B30.26
• Finish: shackle bow painted silver, pin painted green
• Temperature range: -40 °F up to +392 °F
• Certification: Z1, Z2, Z4, MTC+, DNV PL, MPI+, US+, DNV 0377, DNV 0378, CE IIA

Description:

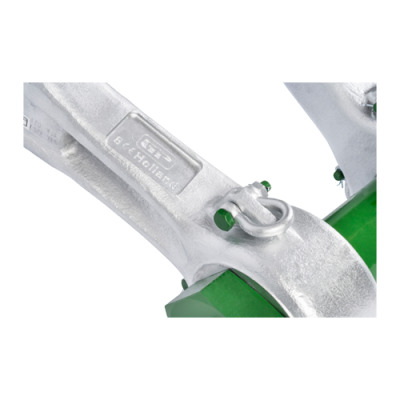

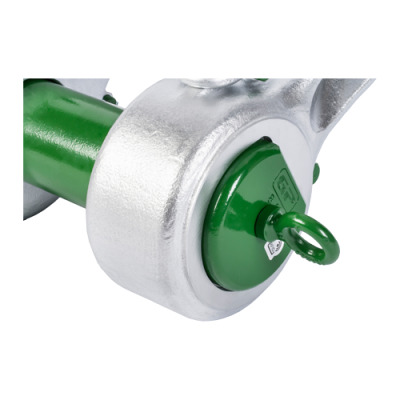

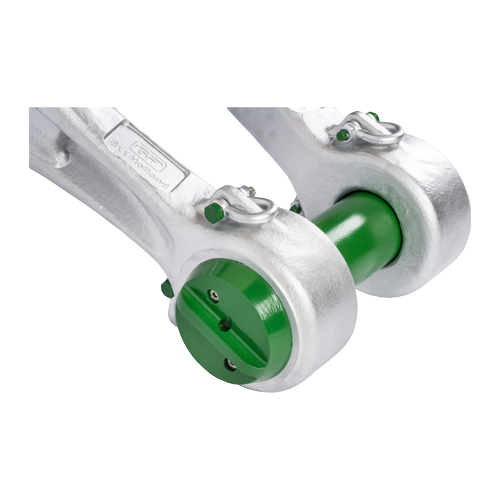

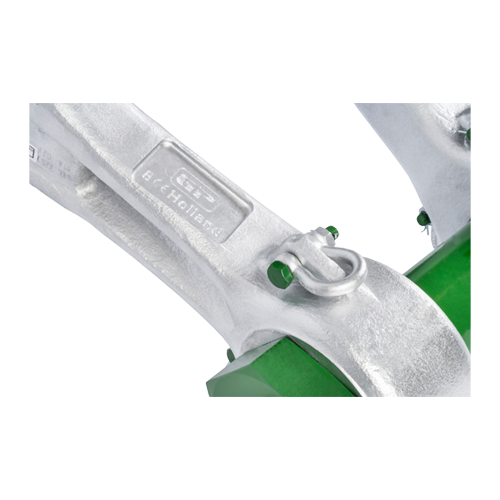

The Green Pin Power Sling® Shackle BN is specially developed for heavy lifting. It is the top product in the Green Pin® shackle assortment and the wider lifting industry. The Green Pin Power Sling® Shackle BN has a bending efficiency of 85%. Its shackle crown is the widest in the industry (10% more than shackles of the previous generation) and has an optimal D/d ratio. Furthermore, the areas of the Power Sling® shackle that endure the highest stress have been reinforced. As a result, the Power Sling® lets you save up to 20% on synthetic- and wire rope costs. The long-term performance of the Power Sling® has been scrutinized with tensile- and fatigue testing, subjecting it to more than 40.000 cycles (the API norm specifies 20.000 cycles). Each shackle is proofload tested to twice the working load limit. Ductility of the steel has also been checked at temperatures as low as minus 40 °Celsius degree (-40 °F). Safety and efficiency for riggers are other key benefits of the Power Sling®. The Power Sling® is equipped with six handling points to the body and several more on the pin (larger sizes have more handling points than smaller sizes). Many such handling points are smaller shackles that are attached to the main shackle. Lifting the Power Sling® into place becomes a much safer and easier activity as a result. The Power Sling® can be supplied with a variety of certificates. The Green Pin Power Sling® Shackle BN is available in a range with a working load limit from 125 to 1550T. More information (product video, brochure) can be found on the website www.product.green-pin.com/power-sling.
