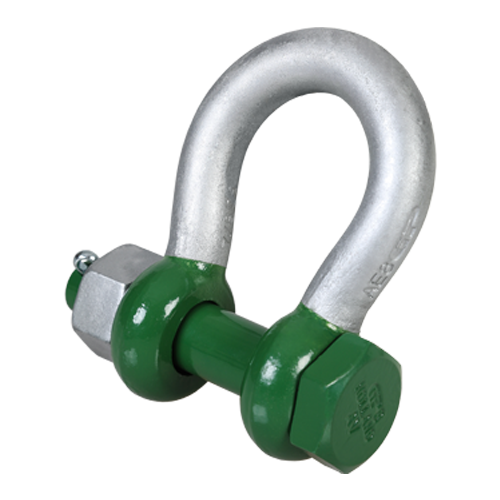

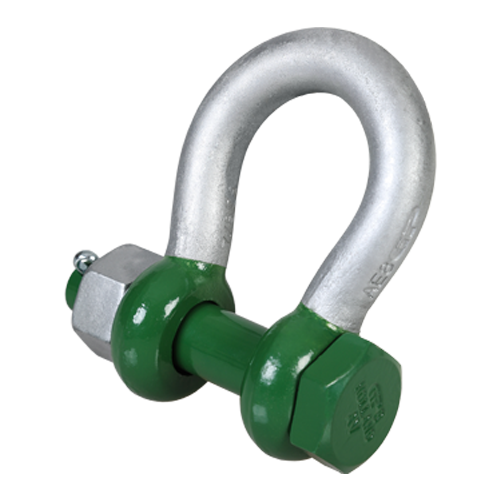

G-5163 - Green Pin Polar Bow Shackle BN, grade 8 With Safety Bolt For Use Under Low Temperatures
Subtotal:
Product Description
Highlights:• Perfect for use in low-temperature situations (down to -60 °C / -76°F)
• Safety bolt: perfect for when rotation of the pin is a risk
• Conforms to wide range of certifications (e.g. DNV)
• Superior stock availability of 99%
• Suitable for both one-leg and multi-leg systems
Specifications:
• Material: bow and pin alloy steel, grade 8, quenched and tempered
• Safety factor: MBL equals 7 x WLL for shackles with WLL 55 t and 85 t the MBL equals 6 x WLL
• Standard: ISO 2415, EN 13889, ASME B30.26 and meets performance requirements of US Fed. Spec. RR-C-271 Type IVA Class 3, grade A
• Finish: hot dipped galvanized
• Temperature range: -76 °F up to +392 °F
• Certification: Z1, Z2, Z4, MTC, DNV 2.7-1, DNV 2.7-3, DNV 0378, CE IIA, ABS PDA, ABS MA
Description:
The Green Pin Polar® Bow Shackle BN is a bow shackle with a safety bolt that has been optimized for use in low temperatures. The shackle can be used in extreme climatic conditions, down to -60°C (-76°F). The shackle offers a double safety (split pin and safety bolt) which prevents accidental unscrewing of the pin. Long-term durability is assured due to the galvanization of the Green Pin Polar® Bow Shackle BN. Of course, the Green Pin Polar® Bow Shackle BN conforms to a wide range of certifications from class societies such as DNV GL. The Green Pin Polar® Bow Shackle BN is suitable for both one-leg and multi-leg systems and is available in a range with a working load limit from 2 up to 85 ton.
Specifications
(Choose size to show)
Spec Sheet
