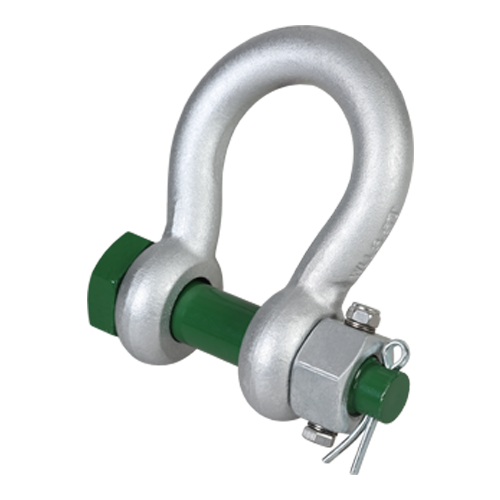

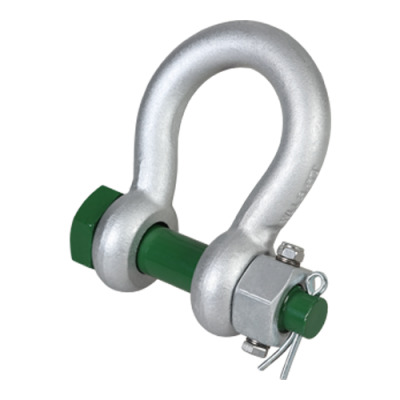

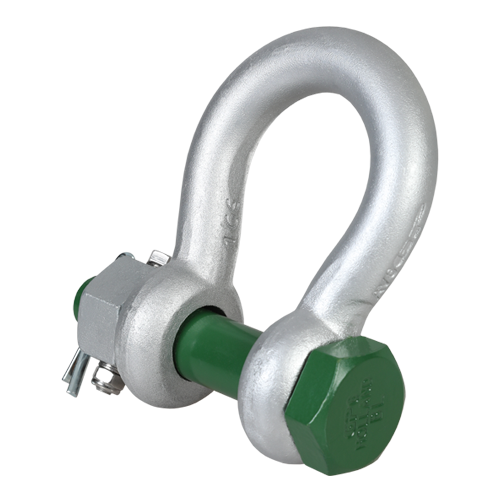

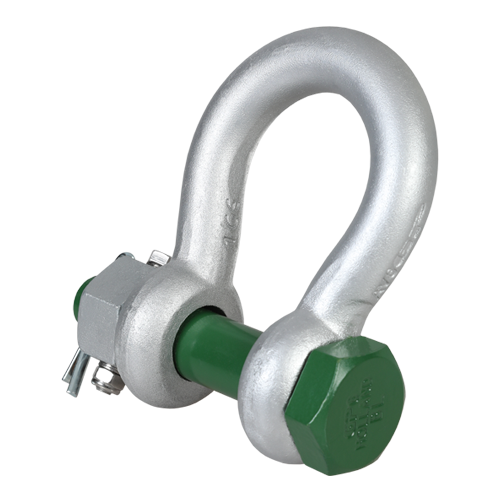

G-4143 - Green Pin Shackle FN, Standard Bow Shackle With Safety Bolt And Fixed Nut
Subtotal:
Product Description
Highlights:• Triple safety (split pin, safety bolt, fixed nut)
• Top choice when the load is dynamic or exposed to extreme vibrations
• Conforms to wide range of certifications (e.g. DNV GL)
• Suitable for both one-leg and multi-leg systems
Specifications:
• Material: bow and pin high tensile steel, grade 60, quenched and tempered
• Safety factor: MBL equals 6 x WLL
• Standard: ISO 2415, EN 13889 and meets performance requirements of US Fed. Spec. RR-C-271 Type IVA Class 3, grade A, from 2 t and upward these shackles comply with ASME B30.26
• Finish: hot dipped galvanized
• Temperature range: -40 °F up to +392 °F
• Certification: Z1, Z2, Z4, MTC, DNV 2.7-1, DNV 2.7-3, CE IIA
Description:
The Green Pin® Bow Shackle FN is a bow shackle with a safety bolt and a fixed nut. The Green Pin® Bow Shackle FN offers a triple safety due to the split pin, safety bolt and fixed nut. The fixed nut is drilled through both the shackle nut and pin and is firmly attached to the pin head with bolts and Nord-Lock® washers. When the load is dynamic or can be exposed to extreme vibrations the Green Pin® Bow Shackle FN is thus a top choice. Of course, the Green Pin® Bow Shackle FN conforms to a wide range of certifications from class societies such as DNV GL. The shackle is suitable for both one-leg and multi-leg systems. It is available in a range with a working load limit from 2 up to 85 ton.
Specifications
(Choose size to show)
Spec Sheet
