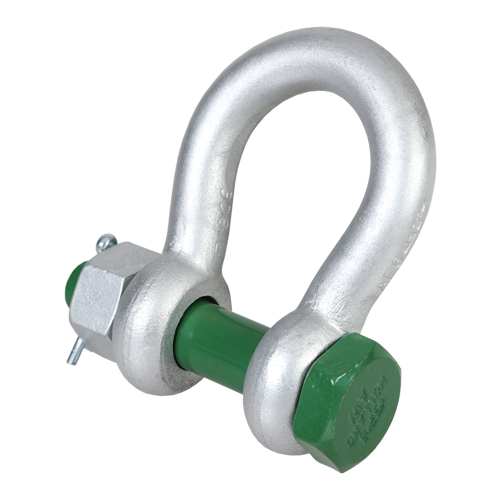

G-4163 - Green Pin Shackle BN, Standard Bow Shackle With Safety Bolt
Subtotal:
Product Description
Highlights:• Double safety (cotter pin & safety bolt)
• Galvanization assures long-term durability
• Suitable for both one-leg and multi-leg systems
• Conforms to wide range of certifications (e.g. DNV)
• Superior stock availability of 99%
Specifications:
• Material: bow and pin high tensile steel, grade 60, quenched and tempered
• Safety factor: MBL equals 6 x WLL
• Standard: ISO 2415, EN 13889 and meets performance requirements of US Fed. Spec. RR-C-271 Type IVA Class 3, grade A, from 2 t and upward these shackles comply with ASME B30.26
• Finish: hot dipped galvanized
• Temperature range: -40 °F up to +392 °F
• Certification: Z1, Z2, Z4, MTC, DNV 2.7-1, DNV 2.7-3, DNV 0378, CE IIA, ABS PDA, ABS MA
Description:
The Green Pin® Bow Shackle BN is a bow shackle with a safety bolt. The shackle offers a double safety (split pin and safety bolt) which prevents accidental unscrewing of the pin. Long-term durability is assured due to the galvanization of the Green Pin® Bow Shackle BN. Of course, the Green Pin® Bow Shackle BN conforms to a wide range of certifications from class societies such as DNV GL. The Green Pin® Bow Shackle BN is suitable for both one-leg and multi-leg systems and is available in a range with a working load limit from 0.5 up to 85 ton.
Specifications
(Choose size to show)
Spec Sheet
G-4163.pdfRelated products
