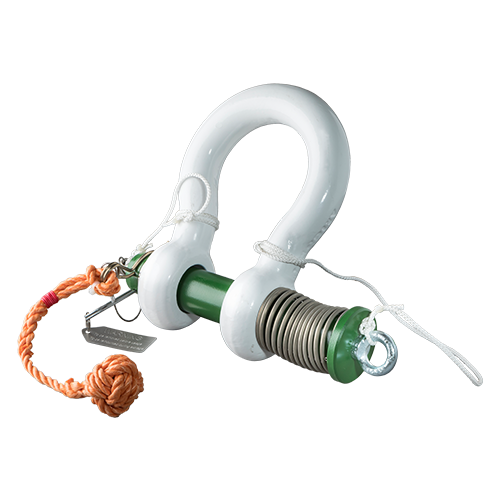

P-5367 - Green Pin Shackle, Release ROV Shackle (grade 8) With Spring

Product Description

Highlights:
• Excellent choice for ROV release operations
• Quick release system that is manipulated easily by an ROV arm
• Reduces the time needed to disassemble shackles underwater
• Developed specifically for sub-sea applications
• White coating optimizes visibility under water

Specifications:
• Material: bow and pin alloy steel, grade 8, polar quality, quenched and tempered
• Safety factor: MBL equals 5 x WLL
• Finish: body painted white, pin painted green
• Temperature range: -40 °F up to +392 °F
• Certification: Z1, Z2, Z4, MTC, MTC+, LROS, CE IIA
• Note: for in-line use only. this shackle is assembled with wire rope slings and monkey's fist. For size starting from WLL 42.5 t up to and including 150 t a special compression tool (sold separately) is required to assemble the shackle.

Description:
The Green Pin® Spring Release ROV Shackle is a grade 8 shackle developed specifically for (subsea) release operations with a remotely operated vehicle (ROV). The shackle has a specially designed quick release system that can be manipulated easily by a hydraulically operated ROV arm, without compromising safety. By activating the spring the shackle is disassembled quickly and safely. The Green Pin® Spring Release ROV Shackle is also suitable for use in extremely low temperatures (down to -60 °C / -76°F). Assembly of the shackle can be done by hand for the smaller sizes. A compression tool (sold separately) should be used for sizes with a working load limit of 42.5 ton and up. Of course, the Green Pin® Spring Release ROV Shackle conforms to a wide range of certifications. The Green Pin® Spring Release ROV Shackle is available in a range with a working load limit from 12 up to 150 ton.
