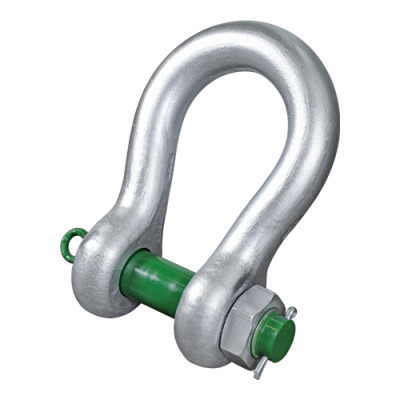

P-6036 - Green Pin Shackle BN, High Load Capacity Bow Shackle With Safety Bolt
Subtotal:
Product Description
Highlights:• Good choice for heavy lifting projects
• Suitable for both one-leg and multi-leg systems
• Superior stock availability of 99%
• Conforms to wide range of certifications
• Safety bolt: perfect for when rotation of the pin is a risk
Specifications:
• Material: bow and pin alloy steel, grade 8, quenched and tempered
• Safety factor: MBL equals 5 x WLL
• Standard: ASME B30.26
• Finish: shackle bow painted silver, pin painted green
• Temperature range: -40 °F up to +392 °F ≤ WLL 600 t
• Certification: Z1, Z2, Z4, MTC, CE IIA Optional: MTC+, LROS, MPI, US+
Description:
The Green Pin® Heavy Duty Bow Shackle BN is a high load capacity bow shackle with a safety bolt. The Green Pin® Heavy Duty Bow Shackle BN is a good choice for heavy lifting projects and is suitable for both one-leg en multi-leg systems. When rotation of the pin is a risk, this shackle's safety bolt prevents accidental unscrewing. Another important feature of the product is that the Green Pin® Heavy Duty Bow Shackle BN conforms to a wide range of certifications. For example, Heavy Duty Shackles of 150T and higher include a Lloyd's proofload test certificate. The Green Pin® Heavy Duty Bow Shackle BN is available in a range with a working load limit from 120 up to 1500 ton.
Specifications
(Choose size to show)
Spec Sheet
