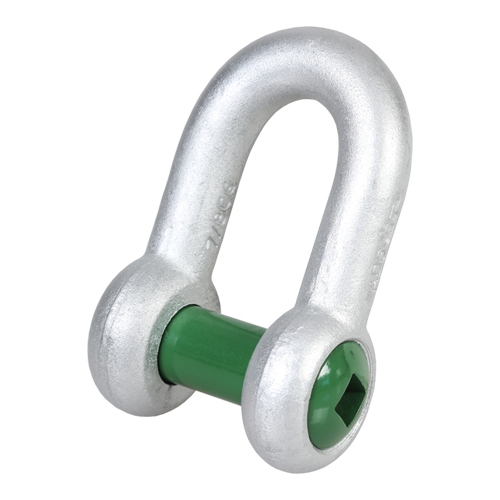

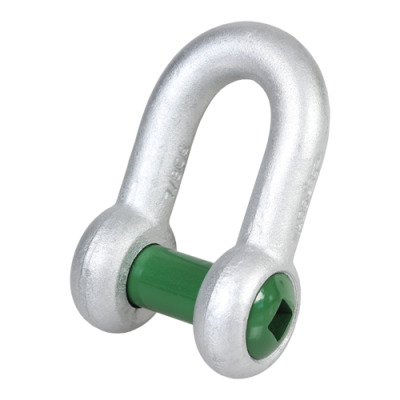

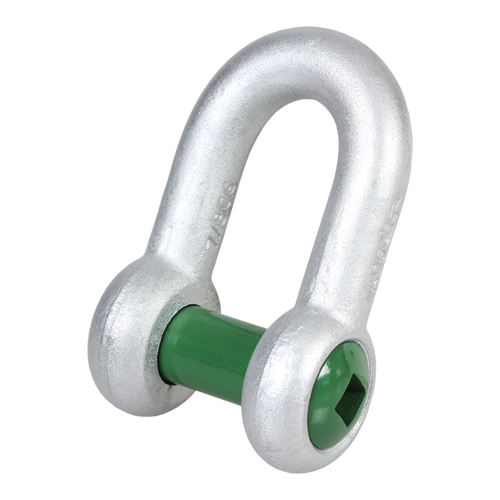

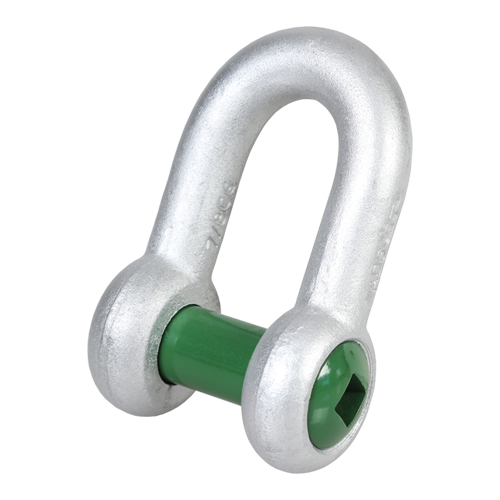

G-4159 - Green Pin Shackle FP, Dee Shackle With Square Sunken Hole Screw Pin (Flush Pin)
Subtotal:
Product Description
Highlights:• No protruding parts so does not damage nets
• Assembled with sunken hole key
• Galvanization assures long-term durability
• Suitable for one-leg systems only
• Chamber in the shackle eye hides the screw thread and reduces wear
Specifications:
• Material: bow and pin high tensile steel, grade 60, quenched and tempered
• Safety factor: MBL equals 6 x WLL
• Standard: ISO 2415, EN 13889, ASME B30.26 and meets performance requirements of US Fed. Spec. RR-C-271, grade A
• Finish: hot dipped galvanized
• Certification: Z1, Z2, Z4, MTC, CE IIA
Description:
The Green Pin® Fishing Dee Shackle FP is a dee shackle with a square sunken hole screw pin (flush pin). The Green Pin® Fishing Dee Shackle FP contains no protruding parts so it does not damage or get caught in fishing nets. Another important feature is that the chamber in the shackle eye hides the screw thread and reduces wear of rope. Galvanization of the bow shackle ensures its long-term durability. The Green Pin® Fishing Dee Shackle FP is suitable for one-leg lifting systems only and can be assembled with the help of the Green Pin® Sunken Hole Key. The shackle is available in a range with a working load limit from 2 up to 17 ton.
Specifications
(Choose size to show)
Spec Sheet
G-4159.pdfRelated products
