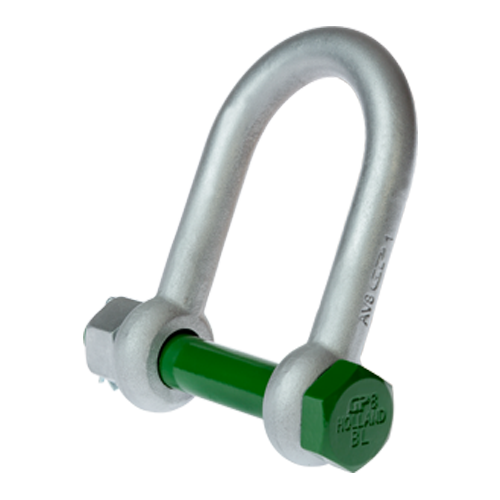

G-4553 - Green Pin BigMouth Shackle BN, Grade 8 Dee Shackle With A Longer Inside Length, Wider Mouth And Safety Bolt
Subtotal:
Product Description
Highlights:• Longer inside length
• Perfect for lifting steel sheet pile walls
• Galvanization assures long-term durability
• Double safety (cotter pin & safety bolt)
• Suitable for one-leg systems only
Specifications:
• Material: bow and pin alloy steel, grade 8, quenched and tempered
• Safety factor: MBL equals 5 x WLL
• Standard: ASME B30.26
• Finish: hot dipped galvanized
• Temperature range: -4 °F up to +392 °F
• Certification: Z1, Z2, Z4, MTC, CE IIA
Description:
The Green Pin BigMouth® Dee Shackle BN is ideal for use in situations where a lifting point is out of reach for a standard shackle. The BigMouth® Dee Shackle BN has a wider inside width and a longer inside length enabling you to connect the shackle to non-typical lifting points. Such lifting points are for example often found in the steel sheet pile wall industry. The lifting points on the pile walls are usually set at a depth at which only a Green Pin BigMouth® Dee Shackle BN can be used to complete the job. The Green Pin BigMouth® Dee Shackle BN is fitted with a safety bolt. Long-term durability is assured due to the galvanization of the Green Pin BigMouth® Dee Shackle BN. The shackle conforms to a range of certifications. The Green Pin BigMouth® Dee Shackle BN is suitable for both one-leg and multi-leg systems and is available in a range with a working load limit from 4.6 up to 15.5 ton.
Specifications
(Choose size to show)
Spec Sheet
G-4553.pdfRelated products
