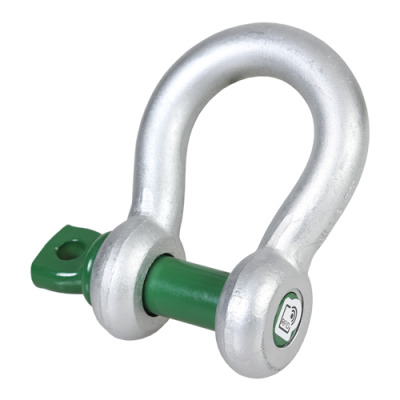

G-4161 - Green Pin Bow Shackle SC, Standard Bow Shackle With Screw Collar Pin
Subtotal:
Product Description
Highlights:• Screw pin for quick (dis)assembly
• Galvanization assures long-term durability
• Suitable for both one-leg and multi-leg systems
• Conforms to wide range of certifications (e.g. DNV)
• Superior stock availability of 99%
Specifications:
• Material: bow and pin high tensile steel, grade 60, quenched and tempered
• Safety factor: MBL equals 6 x WLL
• Standard: ISO 2415, EN 13889 and meets performance requirements of US Fed. Spec. RR-C-271 Type IVA Class 2, grade A, from 2 t and upward these shackles comply with ASME B30.26
• Finish: hot dipped galvanized
• Temperature range: -40 °F up to +392 °F
• Certification: Z1, Z2, Z4, MTC, DNV 0378, CE IIA, ABS PDA, ABS MA
Description:

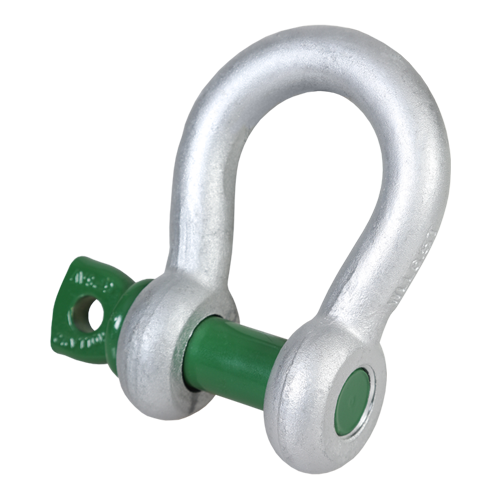

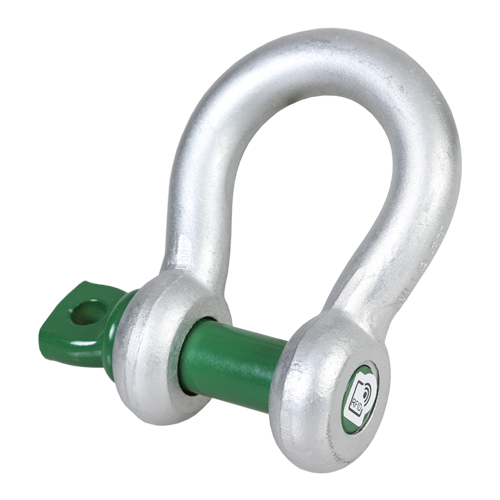

The Green Pin® Bow Shackle SC is a bow shackle with a screw collar pin. The screw pin enables quick (dis)assembly which makes the shackle perfect for rigging activities in which assembly and disassembly occur relatively frequently. The Green Pin® Bow Shackle SC can be used for both one-leg and multi-leg systems. Due to the galvanization of the shackle its long-term durability is assured. The shackle's design reduces the wear of (wire) rope as the screw thread is hidden in a chamber. Particularly important for use offshore, the Green Pin® Bow Shackle SC conforms to a wide range of certifications from class societies such as DNV GL. The shackle is available in a range with a working load limit from 0.33 up to 55 ton.
Specifications
(Choose size to show)
Spec Sheet
