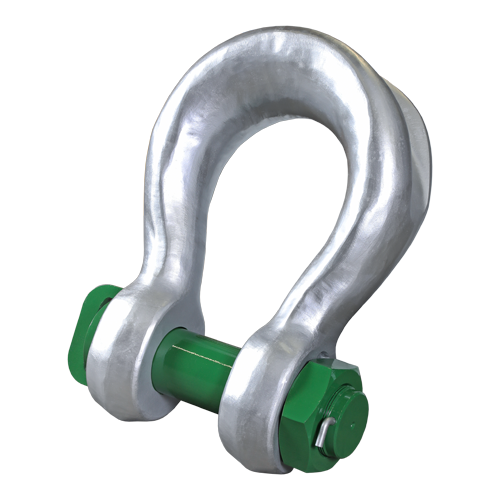

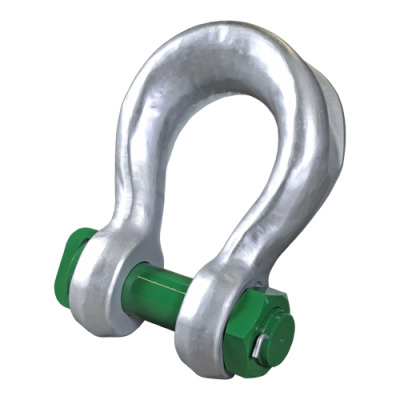

P-6033 - Green Pin Shackle BN, High Load Capacity Wide Body Bow Shackle With Safety Bolt

Product Description

Highlights:
• Saves on cost of wire/synthetic rope due to less wear
• Excellent choice for heavy lifting projects
• Double safety (cotter pin & safety bolt)
• Superior stock availability of 99%
• Conforms to wide range of certifications (e.g. DNV)

Specifications:
• Material: bow and pin alloy steel, grade 8, quenched and tempered
• Safety factor: MBL equals 5 x WLL
• Standard: ASME B30.26 ≤ WLL 600 t
• Finish: shackle bow painted silver, pin painted green (WLL 7 t up to 55 t shackles are hot dipped galvanized)
• Temperature range: -40 °F up to +392 °F ≤ WLL 600 t -4 °F up to +392 °F > WLL 700 t
• Certification: Z1, Z2, Z4, MTC, CE IIA Optional: MTC+, LROS, MPI, US

Description:

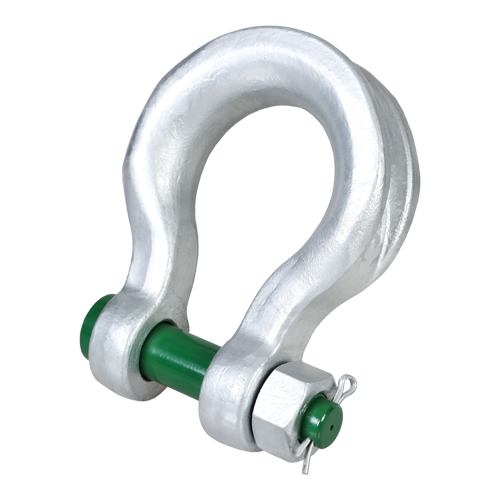

The Green Pin® Sling Shackle BN is a high load capacity bow shackle with a safety bolt and a fixed nut. The Sling Shackle BN is an excellent choice for heavy lifting projects due to the shape of the shackle crown. Compared to the standard Green Pin® Bow Duty Shackles, Sling Shackles have an increased bow radius to improve your sling's resistance to wear and tear and enable you to use a lighter wire rope to lift the same heavy load. This means that by using the Green Pin® Sling Shackle BN you can save on wire rope costs (however, the Green Pin® Power Sling shackle offers even bigger savings). The shackle also offers a double safety (split pin and safety bolt) which prevents accidental unscrewing of the pin. Of course, galvanization of the Green Pin® Sling Shackle BN ensures long-term durability. A wide range of certifications is also available. Green Pin® Sling Shackles BN of 75 tons and higher include a Lloyd's proofload test certificate for example. The Green Pin® Sling Shackle BN is available in a range with a working load limit from 7 up to 1550 tons.
