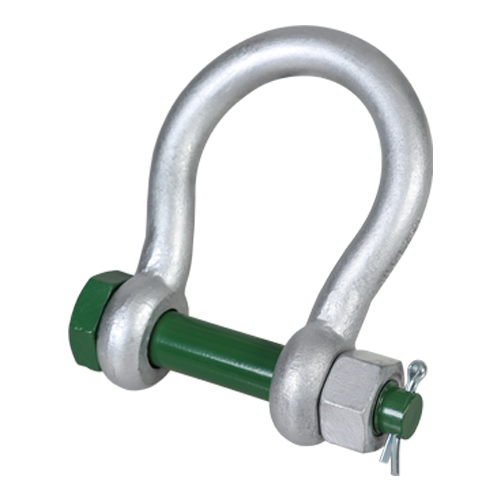

G-4263 - Green Pin BigMouth Shackle BN, grade 8 Bow Shackle With Safety Bolt And Wider Shackle Mouth
Subtotal:
Product Description
Highlights:• Perfect for use with wide connecting points due to wide shackle mouth
• Ideal for towing operations
• Galvanization assures long-term durability
• Suitable for both one-leg and multi-leg systems
• Superior stock availability of 99%
Specifications:
• Material: bow and pin alloy steel, grade 8, quenched and tempered
• Safety factor: MBL equals 6 x WLL
• Standard: ASME B30.26
• Finish: hot dipped galvanized
• Temperature range: -4 °F up to +392 °F
• Certification: Z1, Z2, Z4, MTC, CE IIA
Description:
The Green Pin BigMouth® Bow Shackle BN is a grade 8 shackle with a safety bolt and a wider shackle mouth. The wider shackle mouth enables you to connect the shackle to a connecting point (e.g. a pad eye) which is wider than usual. The shackle also offers a double safety (split pin and safety bolt) which prevents accidental unscrewing of the pin. Long-term durability is assured due to the galvanization of the Green Pin BigMouth® Bow Shackle BN. Of course, the Green Pin BigMouth® Bow Shackle BN conforms to a range of certifications. The shackle is suitable for both one-leg and multi-leg systems and is available in a range with a working load limit from 4.75 up to 75 ton.
Specifications
(Choose size to show)
Spec Sheet
