G-4153 - Green Pin Shackle BN, Standard Dee Shackle With Safety Bolt
Subtotal:
Product Description
Highlights:• Double safety (cotter pin & safety bolt)
• Galvanization assures long-term durability
• Suitable for one-leg systems only
• Conforms to wide range of certifications (e.g. DNV)
• Superior stock availability of 99%
Specifications:
• Material: bow and pin high tensile steel, grade 60, quenched and tempered
• Safety factor: MBL equals 6 x WLL
• Standard: ISO 2415, EN 13889, ASME B30.26 and meets performance requirements of US Fed. Spec. RR-C-271 Type IVB Class 3, grade A
• Finish: hot dipped galvanized
• Temperature range: -40 °F up to +392 °F
• Certification: Z1, Z2, Z4, MTC, DNV 2.7-1, DNV 2.7-3, DNV 0378, CE IIA, ABS PDA, ABS MA
Description:

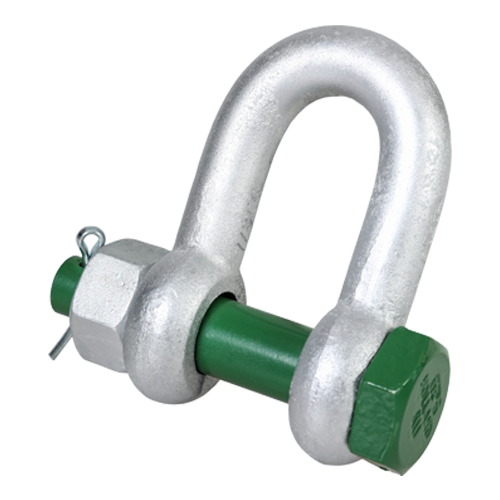

The Green Pin® Dee Shackle BN is a dee shackle with a safety bolt. The shackle offers a double safety (split pin and safety bolt) which prevents accidental unscrewing of the pin. Its long-term durability is assured due to galvanization. Particularly important for use offshore, the shackle conforms to a wide range of certifications from class societies such as DNV GL. The Green Pin® Dee Shackle BN is suitable for one-leg lifting systems only and is available in a range with a working load limit from 2 up to 85 ton.
Specifications
(Choose size to show)
Spec Sheet
