G-5263 - Green Pin Super Bow Shackle BN, grade 8 With Safety Bolt
Subtotal:
Product Description
Highlights:• Easier handling due to smaller size and weight (with equal WLL)
• Double safety (cotter pin & safety bolt)
• Galvanization assures long-term durability
• Conforms to wide range of certifications (e.g. DNV)
• Superior stock availability of 99%
Specifications:
• Material: bow and pin alloy steel, grade 8, quenched and tempered
• Safety factor: MBL equals 5 x WLL
• Standard: ASME B30.26 and meets performance requirements of US Fed. Spec. RR-C-271 Type IVA Class 3, grade B
• Finish: hot dipped galvanized (150 t and upward are painted)
• Temperature range: -4 °F up to +392 °F
• Certification: Z1, Z2, Z4, MTC, LROS, CE IIA, ABS PDA, ABS MA
Description:

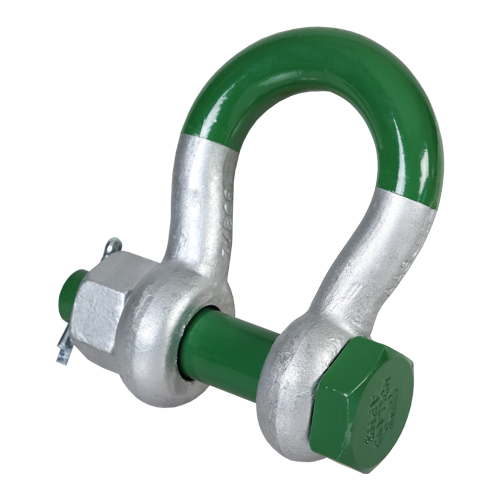

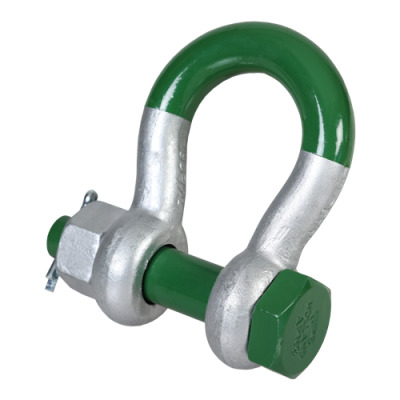

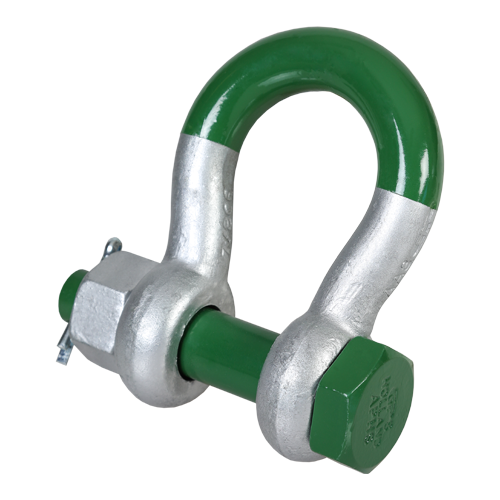

The Green Pin Super® Bow Shackle BN is a grade 8 bow shackle with a safety bolt. Handling of the Green Pin Super® Bow Shackle BN is easier due to the smaller size and weight (with an equal working load limit when compared to non-Super products). The shackle also offers a double safety (split pin and safety bolt) which prevents accidental unscrewing of the pin. Furthermore, the long-term durability of the shackle is assured as a result of its galvanization. Wear and tear of the counter components such as wire rope is also minimized as the chamber in the shackle eye hides the screw thread. The Green Pin Super® Bow Shackle BN is available in a range with a working load limit from 3.5 up to 175t (note: sizes 150t and 175t have a round headed bolt).
Specifications
(Choose size to show)
Spec Sheet
G-5263.pdfRelated products
