P-5365 - Green Pin Shackle, Release ROV Shackle (grade 8) With Locking Clamp
Subtotal:
Product Description
Highlights:• Powerful locking system ensures load is not released unintentionally
• Locking system is easy to handle for the ROV pilot
• Designed for under water use in harsh conditions
• White coating optimizes visibility under water
• Developed specifically for sub-sea applications
Specifications:
• Material: bow and pin alloy steel, grade 8, polar quality, quenched and tempered
• Safety factor: MBL equals 6 x WLL for shackles with WLL 120 t and up the MBL equals 5x WLL
• Finish: body painted white, pin painted green
• Temperature range: -76 °F up to +392 °F (-40 °F up to +392 °F for WLL 120 t and up)
• Certification: Z1, Z2, Z4, MTC, MTC+, LROS, CE IIA
• Note: supplied without wires; design your own wiring plan
Description:

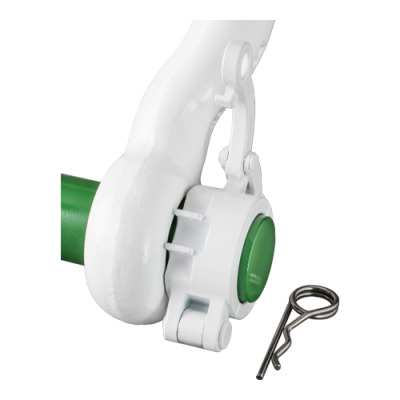

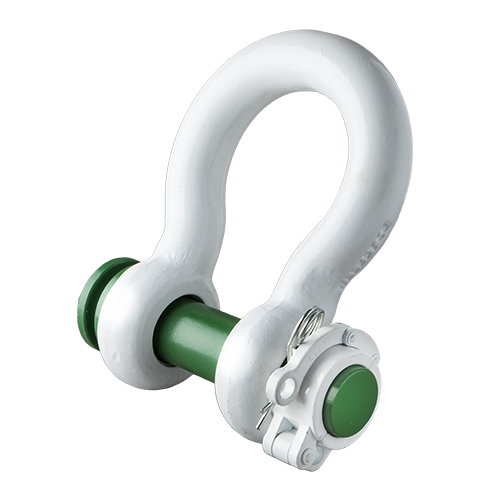

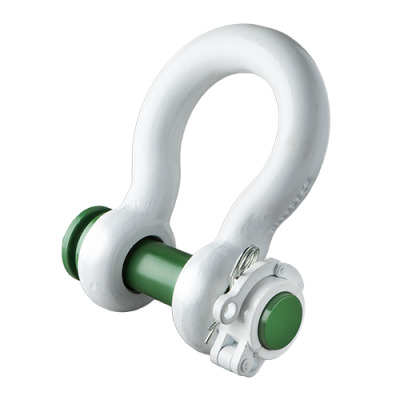

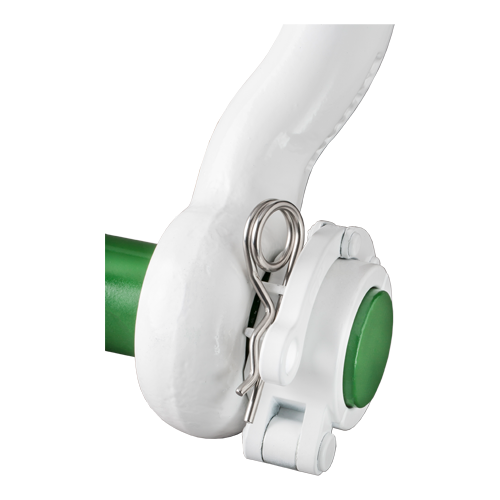

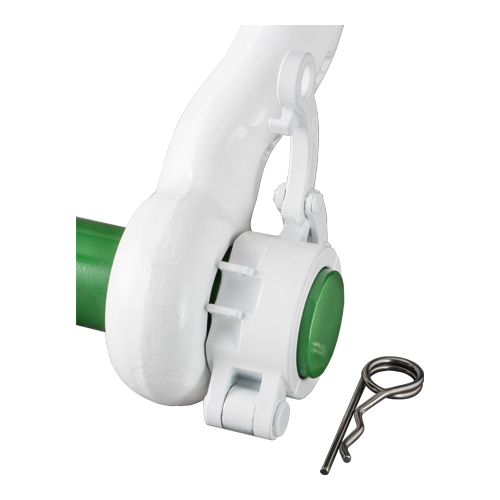

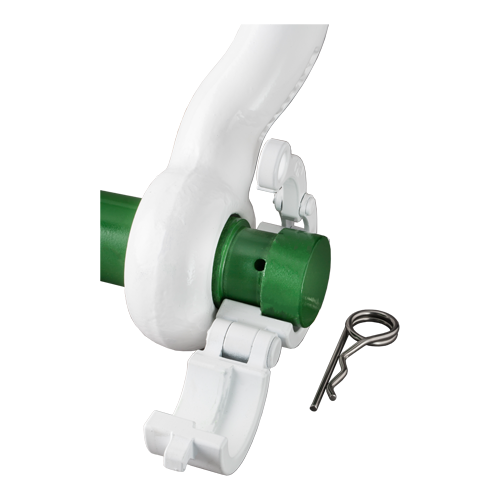

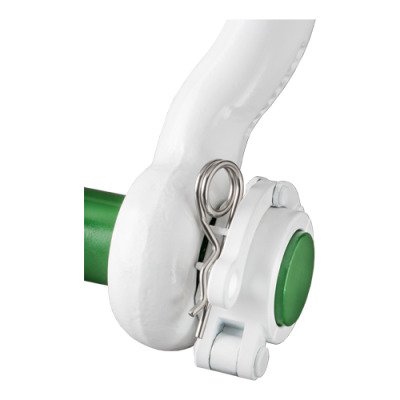

The Green Pin® Locking Clamp ROV Shackle is perfect for release operations with a remotely operated vehicle (ROV). The grade 8 shackle has been specially developed for sub-sea applications and is easy to handle for the ROV pilot. The Green Pin® Locking Clamp ROV Shackle has a powerful locking system which ensures that the load will not be released before you want it to. The white coating of the Green Pin® Locking Clamp ROV Shackle optimizes visibility under water and ensures its long-term durability. The ROV shackle is available in a range with a working load limit from 6.5 up to 250 ton.
Specifications
(Choose size to show)
Spec Sheet
P-5365.pdfRelated products
