G-4161T - Green Pin Theatre Shackle SC, Matte Black Bow Shackle With Screw Collar Pin
Subtotal:
Product Description
Highlights:• No sheen or light reflections due to black matte finish
• Screw pin for quick (dis)assembly
• Specially developed for entertainment venues
• Chamber in the shackle eye hides the screw thread and reduces wear
• Reliable Green Pin® quality and support
Specifications:
• Material: bow and pin high tensile steel, grade 60, quenched and tempered
• Safety factor: MBL equals 6 x WLL
• Standard: ISO 2415, EN 13889 and meets performance requirements of US Fed. Spec. RR-C-271 Type IVA Class 2, grade A, from 2 t and upward these shackles comply with ASME B30.26
• Finish: black
• Temperature range: -40 °F up to +392 °F
• Certification: Z1, Z2, Z4, MTC, CE IIA
Description:

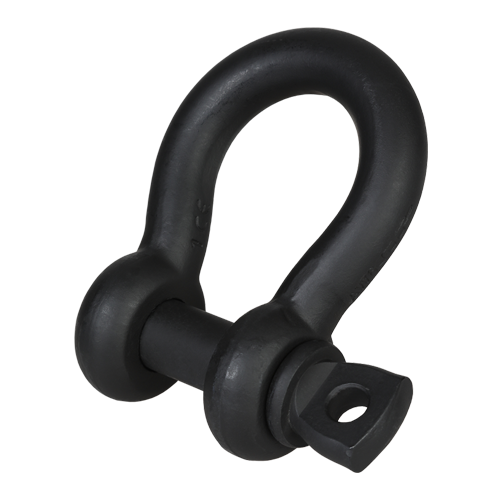

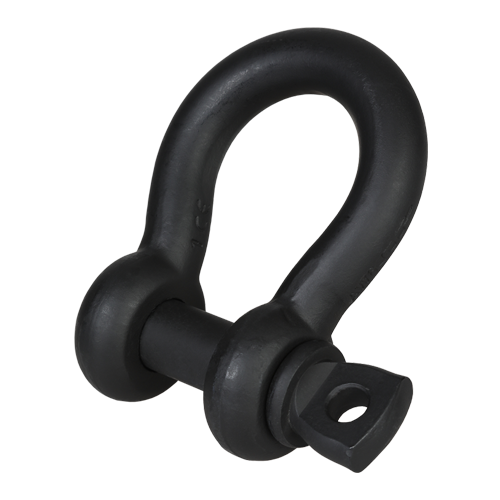

The Green Pin® Theatre Shackle SC is a matte black, bow shackle with a screw collar pin. The shackle has been specially developed for use in theatres and other entertainment venues. Due to its black matte finish, the Green Pin® Theatre Shackle SC shows no sheen or light reflections and therefore does not distract from the performance on stage. The screw pin enables quick (dis)assembly which makes the shackle perfect for rigging activities in which assembly and disassembly occur relatively frequently. Also, there is a chamber in the shackle eye of the Green Pin® Theatre Shackle SC which hides the screw thread and reduces wear of rope. The Green Pin® Theatre Shackle SC is available in a range with a working load limit from 0.33 up to 8.5 ton.
Specifications
(Choose size to show)
