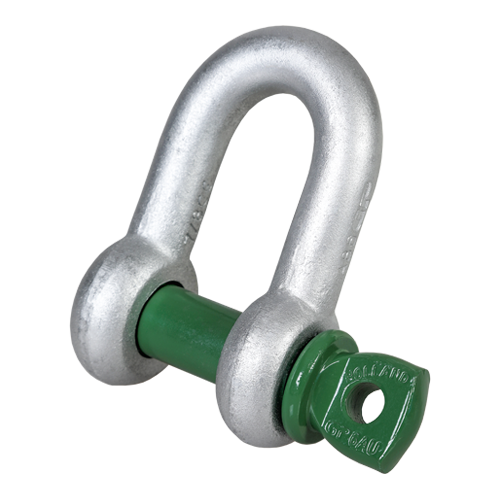

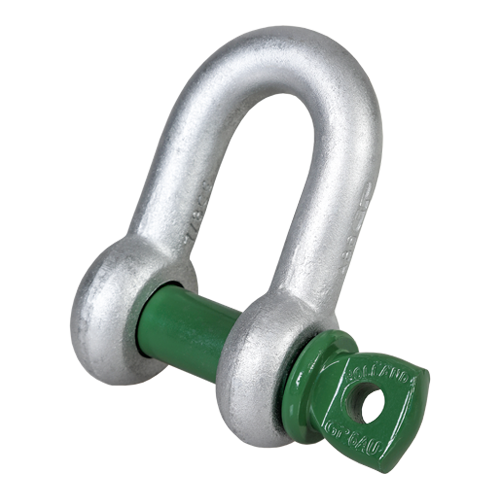

G-4151 - Green Pin Shackle SC, Standard Dee Shackle With Screw Collar Pin
Subtotal:
Product Description
Highlights:• Screw pin for quick (dis)assembly
• Galvanization assures long-term durability
• Suitable for one-leg systems only
• Conforms to wide range of certifications (e.g. DNV)
• Superior stock availability of 99%
Specifications:
• Material: bow and pin high tensile steel, grade 60, quenched and tempered
• Safety factor: MBL equals 6 x WLL
• Standard: ISO 2415, EN 13889 and meets performance requirements of US Fed. Spec. RR-C-271 Type IVB Class 2, grade A, from 2 t upward these shackles comply with ASME B30.26
• Finish: hot dipped galvanized
• Temperature range: -40 °F up to +392 °F
• Certification: Z1, Z2, Z4, MTC, DNV 0378, CE IIA, ABS PDA, ABS MA
Description:
The Green Pin® Dee Shackle SC is a dee shackle with a screw collar pin. The screw pin enables quick (dis)assembly which makes the shackle perfect for rigging activities in which assembly and disassembly occur relatively frequently. Due to the galvanization of the shackle its long-term durability is assured. Furthermore, the shackle's design reduces the wear of (wire) rope as the screw thread is hidden in a chamber. Particularly important for use offshore, the Green Pin® Dee Shackle SC conforms to a wide range of certifications from class societies such as DNV GL. The Green Pin® Dee Shackle SC is suitable for one-leg lifting systems only and is available in a range with a working load limit from 0.33 up to 55 ton.
Specifications
(Choose size to show)
Spec Sheet
