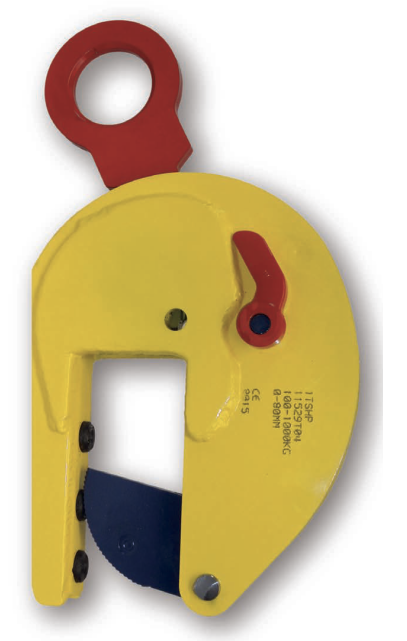

Terrier TSHP/TSHP-A Lightweight clamp with extra large jaw opening
Subtotal:
Product Description
Lightweight clamp with extra large jaw openingApplication:
• For vertical lifting, handling, and transporting of Holland Profile
(HP) shipbuilding structures, steel plates, and structures
• Turning lathe clamp
• TSHP jaw opening from 0 to 3.14 in.
• TSHP-A adjustable jaw opening available from: 0 to 6.10 in.
• Working load limit (WLL) 2,200 - 3,300 lbs
Min. WLL is 10% of max. WLL
• Higher WLL available upon request.
• Lifting of longer sections should be done with a spreader beam
Note: Surface hardness of the material lifted must not exceed 37 HRC/345 Hb
Features and Benefits:
• Useful as a “big-jaw” opening clamp
• Standard with 3 pivots for extra powerful clamping force
• Easy handling of workpieces in and out of lathe due to extra small
W-dimensions (see illustration)
• Lightweight design for easy handling
• Tough quality heavy-duty welded shell body
• Always equipped with a safety mechanism, ensuring the clamp does not slip
when lifting force is applied and when load is being lowered
• Clamp is locked in closed as well as open position
• Maintenance-friendly. Easy to exchange parts are available upon request
