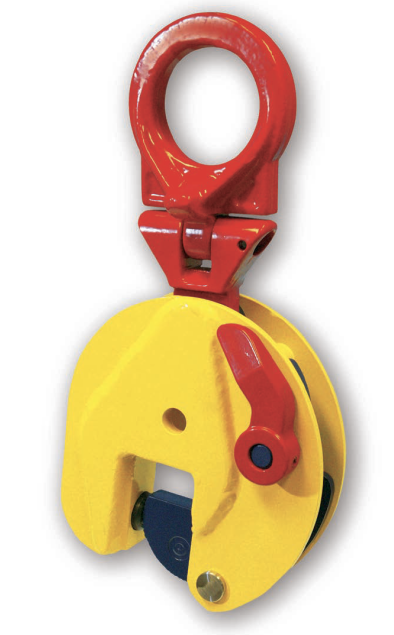

Terrier TSU/TSEU/STSU lightweight heavy duty clamp for universal lifting
Subtotal:
Product Description
Application:• For vertical lifting, transporting, and turning of all steel plates and structures
from all positions
• Jaw openings available from: 0 to 5.90 in.
• TSEU / STSU types are supplied with enlarged jaw opening
• Working load limit (WLL) 1,650 - 66,000 lbs (Higher WLL available upon request)
• Min. WLL is 10% of max. WLL
Note: Surface hardness of the material lifted must not exceed 37 HRC/345 Hb
Features and Benefits:
• Articulated lifting shackle for universal lifting flexibility at various angles
• The articulated lifting shackle guarantees a pressure grip in every position,
even when side loading up to 90 degrees. Note a lower load capacity when
lifting at an angle higher than 45 degrees. Please check WLL illustrations below.
• Longer plates can be lifted without the use of a spreader beam when using
two clamps on a two legged chain sling
• Always equipped with a safety mechanism, ensuring the clamp does not slip
when lifting force is applied and when load is being lowered
• Clamp is locked in closed as well as open position
• Tough quality heavy-duty welded shell body
• Maintenance-friendly. Easy to exchange parts are available upon request
Specifications
(Choose size to show)
