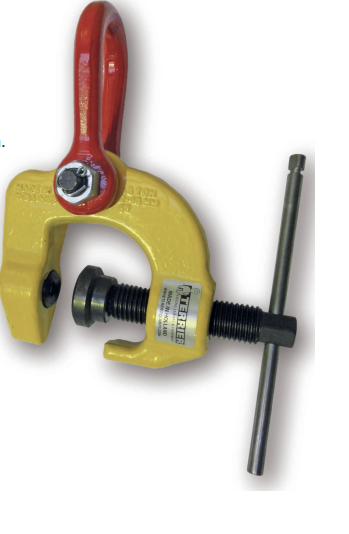

Terrier TSCC/TSCC-W Multi-purpose screw clamp
Subtotal:
Product Description
Application:• For vertical and horizontal lifting and transportation of a large
variety of steel structures
• Can also be used as upside down attached anchor point (temporary)
• Jaw openings available from: 0 to 3.93 in.
• TSCC-W types are supplied with enlarged jaw openings from: 1.00 to 3.93 in.
(1 TSCC-W & 3 TSCC-W are made in Japan)
• Tightening forces (Depending on material, could vary):
0.5 TSCC – at least 10Nm (3.687 pound-foot, 44.25 pound-inch)
1 - 6 TSCC – at least 40Nm (25.815 pound-foot, 309.78 pound-inch)
• Working load limit (WLL) 1,100 - 13,200 lbs
•
No min. WLL
Features and Benefits:
• Special universal design ensures multi-purpose application of
lifting steel structures
• Fitted with a moveable cam on the thread spindle which provides
a powerful clamping force on the workpiece
• Equipped with a safety screw spindle mechanism, ensuring the
clamp does not slip when lifting force is applied
• Lightweight design for easy handling
• Tough quality heavy-duty drop forged body
• Forged alloy components, where required
• Maintenance-friendly. Easy to exchange parts are available upon request
• All models equipped with tightening bar
Specifications
(Choose size to show)
Spec Sheet
