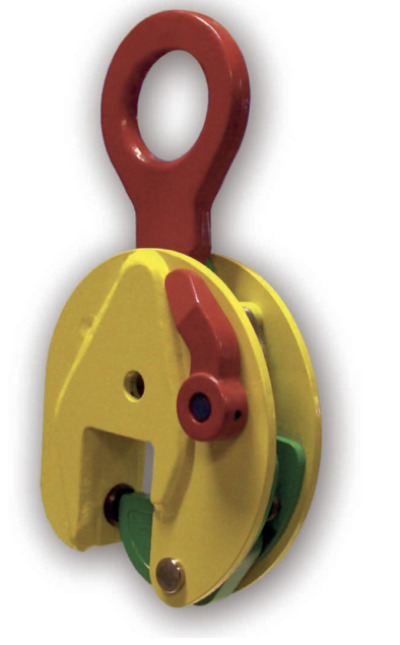

Terrier TS-H/TSE-H/TSU-H/TSEU-H Extra hardened pivot and cam for lifting extra hard steel
Subtotal:
Product Description
Extra hardened pivot and cam for lifting extra hard steelApplication:
• For vertical lifting, transporting, and turning of all steel plates with a
surface hardness of max. 50 HRC (for example AR or Hardox® 400 & 500)
• A surface hardness of max. 55 HRC/560 Hb is available by special order
Please ask for special specifications
• Jaw openings available from: 0 to 2.16 in.
Working load limit (WLL) 1,650 - 16,500 lbs
• Min. WLL is 10% of max. WLL
Higher WLL and jaw opening are available upon request
Note: Surface hardness of the material lifted must not exceed 50 HRC/485 Hb
Features and Benefits:

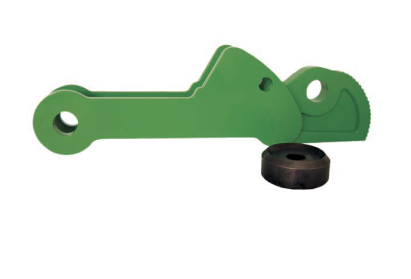

• Equipped with an extra hardened pivot and cam
• Cam color is green for easy indentification and usage
• TSU-H / TSEU-H feature articulated lifting shackle for universal lifting
flexibility at various angles
• TS-H / TSE-H feature standard lifting shackle
• Always equipped with a safety mechanism, ensuring the clamp does
not slip when lifting force is applied and when load is being lowered
• Clamp is locked in closed as well as open position
• Lightweight design for easy handling
• Tough quality heavy-duty welded shell body
• Maintenance-friendly. Easy to exchange parts are available upon request
Specifications
(Choose size to show)
