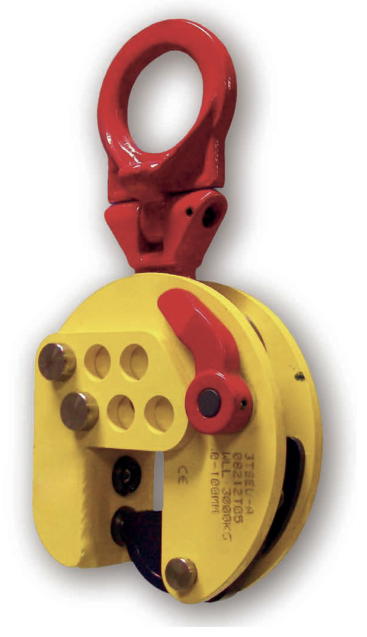

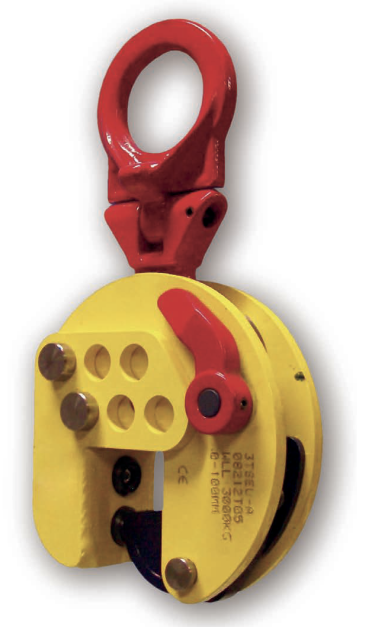

Terrier TSEU-A Universal heavy duty clamp with adjustable extra large jaw opening
-
863300
$3,182.17 $1,904.35
Subtotal:
In Stock
Minimum order qty: 1
Incremental order qty: 1
Incremental order qty: 1
No discounts available for this product.
Product Description
Application:• For vertical lifting, transporting, and turning of all steel plates and structures
from all positions
• Adjustable Jaw opening from: 0 to 3.74 in.
• 3 different jaw positions. Adjustable by steps of 1.18 in.
• Working load limit (WLL) 6,600 lbs
Min. WLL is 10% of max. WLL
Note: Surface hardness of the material lifted must not exceed 37 HRC/345 Hb
Features and Benefits:
• Only 1 clamp needed for different types of jobs
• The same clamp can be used if a larger jaw opening is necessary
• Articulated lifting shackle for universal lifting flexibility at various angles
• The articulated lifting shackle guarantees a pressure grip in every position,
even when side loading up to 90 degrees. Note a lower load capacity when
lifting at an angle higher than 45 degrees. Please check WLL illustrations below.
• Longer plates can be lifted without the use of a spreader beam when using two
clamps on a two legged chain sling
• Standard with 2 pivots for extra clamping force
• Always equipped with a safety mechanism, ensuring the clamp does not slip
when lifting force is applied and when load is being lowered
• Clamp is locked in closed as well as open position
• Lightweight design for easy handling
• Tough quality heavy-duty welded shell body
• Maintenance-friendly. Easy to exchange parts are available upon request
Specifications
- Terrier
- 0" - 3.74"
