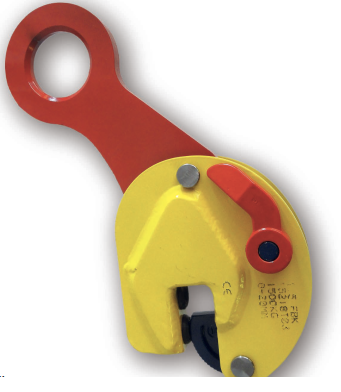

Terrier FBK Special lifting clamp for vertical and handling in-position lifting of beam
Subtotal:
Product Description
Special lifting clamp for vertical and handling in-position lifting of beamsApplication:
- For vertical lifting, transportation, and stacking of steel (H) beams, profiles, and structures where the load must stay perfectly in position
- Especially recommended for transportation and stacking of steel (H) beams (e.g. when sawing of steel beams, stacking of steel beams, and building of steel constructions)
- Jaw openings available from: 0 to 1.00 in.
- Working load limit (WLL) 2,200 - 6,600 lbs
- Min. WLL is 10% of max. WLL
Features and Benefits:
- Special lifting shackle places the gravity center of the beam or load directly beneath the lifting shackle
- While lifting, the equilibrium of the beam is maintained and keeps the flanges vertical so the beam can easily be stacked or positioned
- Always equipped with a safety mechanism, ensuring the clamp does not slip when lifting force is applied and when load is being lowered
- Clamp is locked in closed as well as open position
- Lightweight design for easy handling
- Tough quality heavy-duty welded shell body
- Maintenance-friendly. Easy to exchange parts are available upon request
