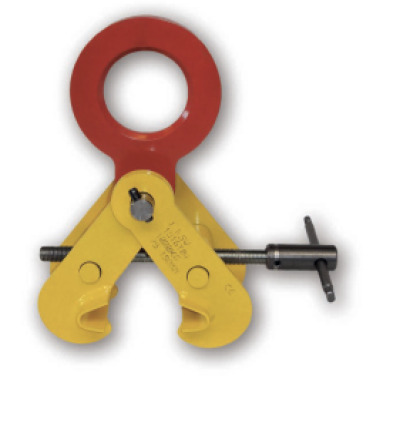

Terrier FSV/FSVS/FSVSU Multi purpose beam screw clamp

Terrier FSV/FSVS/FSVSU Multi purpose beam screw clamp

Capacity/WLL (each)

Type

Subtotal:

Product Description

Application:
• For horizontal lifting and transportation of steel (H) beams,
profiles, and structures
• Can be used as upside down attached anchor point (temporary)
• FSV Jaw openings available from: 2.95 to 17.71 in.
• FSVS / FSVSU types are supplied with enlarged jaw opening:
2.95 to 22.04 in.
• FSV Working load limit (WLL) 2,200 - 22,000 lbs
(Higher WLL available upon request)
• FSVS / FSVSU Working load limit (WLL) up to 11,000 lbs
Features and Benefits:
• Special design makes it possible to lift steel (H) beams and structures
• Equal opening and closing of both jaws for simple and quick operation
• Welded jaw plates for better positioning and less risk of damaging load

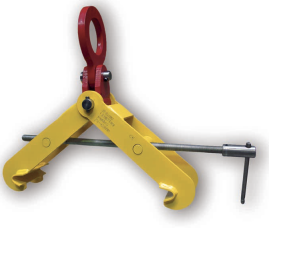

• FSVSU types are supplied with reinforced body and articulated

lifting shackle
• Lightweight, heavy-duty body
• Maintenance-friendly. Easy to exchange parts are available upon request

Specifications

(Choose size to show)

Spec Sheet

FSV-Multi-purpose-beam-screw-clamp.pdf
