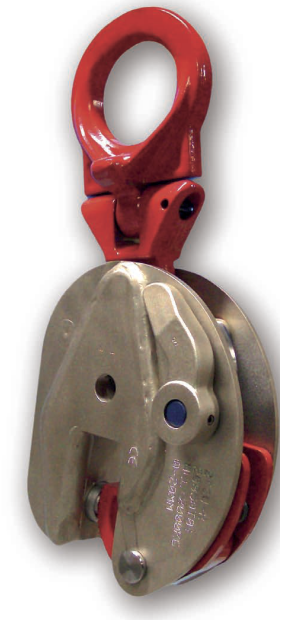

Terrier TS-R/TSE-R/TSU-R/TSEU-R Specially made for stainless steel lifting clamp

Terrier TS-R/TSE-R/TSU-R/TSEU-R Specially made for stainless steel lifting clamp

Capacity/WLL (each)

Type

Subtotal:

Product Description

Application:
• For vertical lifting, transporting, and turning of stainless steel plates and structures
• Jaw openings available from: 0 to 2.16 in.
• Working load limit (WLL) 1,650 - 16,500 lbs
Min. WLL is 10% of max. WLL
Note: Surface hardness of the material lifted must not exceed 30 HRC/277 Hb
Features and Benefits:
• Pivot and cam are made of stainless steel
• Body and lock lever are nickel plated to prevent corrosion due to
carbon contamination
• TSU-R / TSEU-R feature articulated lifting shackle for universal lifting
flexibility at various angles
• TS-R / TSE-R feature standard lifting shackle
• Always equipped with a safety mechanism, ensuring the clamp does not
slip when lifting force is applied and when load is being lowered
• Clamp is locked in closed as well as open position
• Lightweight design for easy handling
• Tough quality heavy-duty welded shell body
• Maintenance-friendly. Easy to exchange parts are available upon request

Specifications

(Choose size to show)

Spec Sheet

TS-R-Specially-made-for-stainless-steel-lifting-.pdf
