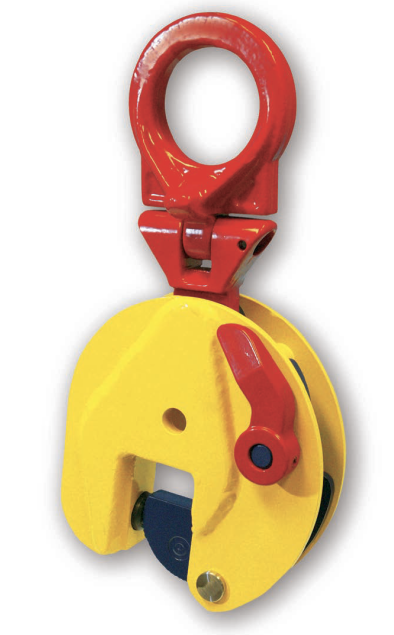

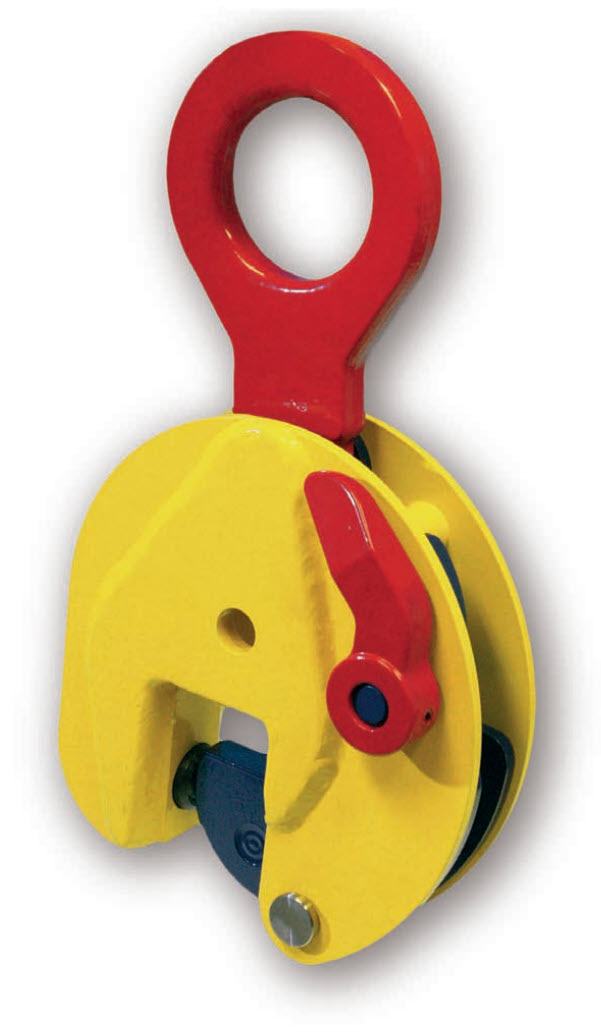

Terrier TS/TSE/STS Heavy duty lightweight vertical lifting clamp

Terrier TS/TSE/STS Heavy duty lightweight vertical lifting clamp

Capacity/WLL (each)

Type

Subtotal:

Product Description

Application:
• For vertical lifting, transporting, and turning of all steel plates and structures
• Jaw openings available from: 0 to 5.90 in.
• TSE / STS types are supplied with enlarged jaw opening
• Working load limit (WLL) 1,650 - 66,000 lbs (Higher WLL available upon request)
• Min. WLL is 10% of max. WLL
Note: Surface hardness of the material lifted must not exceed 37 HRC/345 Hb
Features and Benefits:
• Lightweight design for easy handling
• Tough quality heavy-duty welded shell body
• Always equipped with a safety mechanism, ensuring the clamp does not slip
when lifting force is applied and when load is being lowered
• Clamp is locked in closed as well as open position
• Maintenance-friendly. Easy to exchange parts are available upon request

Specifications

(Choose size to show)

Spec Sheet

TS-Heavy-duty-lightweight-vertical-lifting-clamp.pdf
