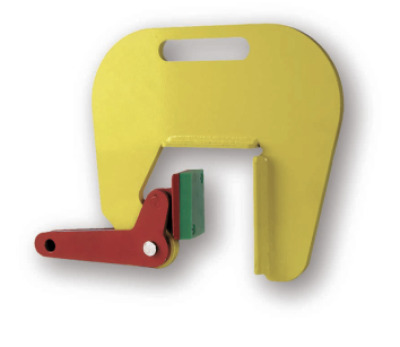

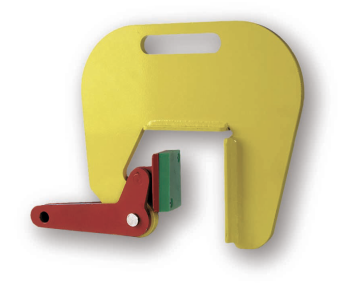

Terrier TBC/TBC-A Lightweight clamp with pressure resistant plastic cam for vertical concrete pipe lifting

Terrier TBC/TBC-A Lightweight clamp with pressure resistant plastic cam for vertical concrete pipe lifting

Capacity/WLL (each)

Type

Subtotal:

Product Description

Application:
• For vertical lifting and transporting of concrete pipes and wells
• Terrier TBC / TBC-A lifting clamps must always be used in pairs
(or per three clamps)
• TBC jaw opening available from: 2.36 to 4.72 in.

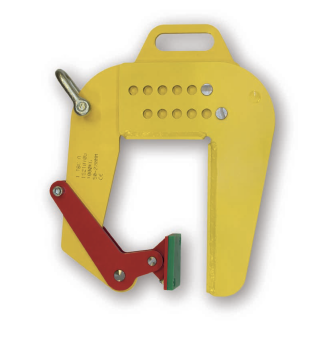

• TBC-A has an XXL jaw opening available from: 1.96 to 8.66 in.
(adjustable in steps of .98 in.)
• Working load limit (WLL) 2,200 lbs
• Min. WLL is 10% of max. WLL
• Other jaw openings available upon request
Features and Benefits:
• The cam is covered with a special high quality pressure resistant plastic
• Maintenance-friendly. Plastic pressure resistant cover is easy to change
• Tough quality heavy-duty body
• Lightweight design for easy handling

Specifications

(Choose size to show)

Spec Sheet

TBC-Lightweight-clamp-with-pressure-resistant-plastic-cam-for-vertical-concrete-pipe-lifting-for-concrete-use-only-.pdf
