G-6419 - Green Pin Open Wedge Socket CP With Longer Wedge, Wire Rope Clip and Cotter Pin
Subtotal:
Product Description
• Material: high tensile steel• Standard: ASME B30.26 and generally to EN 13411-6
• Finish: hot dipped galvanized
• Temperature Range: -40°C up to +200°C
• Certification: 2.1 2.2 3.1 CE
Description

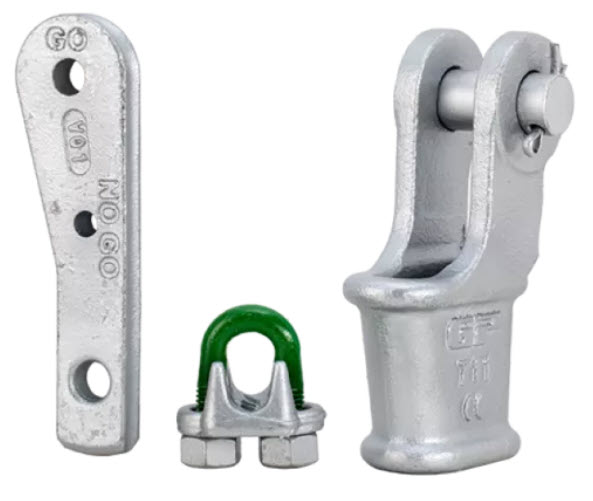

The Green Pin® Open Long Wedge Socket CP is an open wedge socket with a cotter (split) pin. To enhance safety, the socket is equipped with a long wedge to which a Green Pin® Wire Rope Clip can be connected to hold the wire rope in place. Furthermore, the long wedge provides the possibility to verify whether the correct wire rope size is used, by using the “GO” and “NO GO” holes. The socket is made from high tensile, galvanized steel, which ensures its long-term durability. The Open Long Wedge Socket CP is available for wire rope with a diameter from 9-10 up to 30-32 mm.
Specifications
(Choose size to show)
